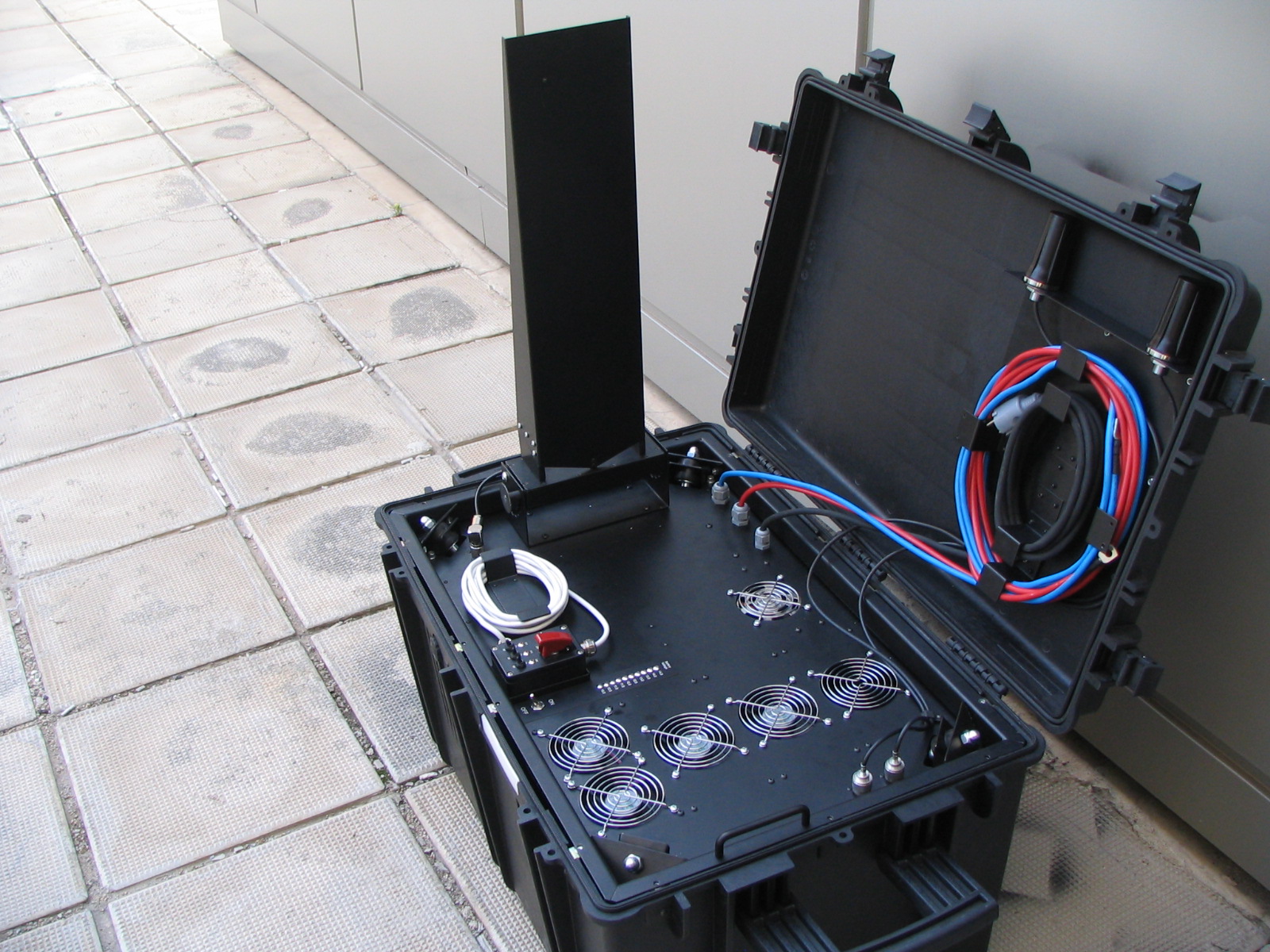

Portable Barrage Jammer PJ300
Rugged, portable barrage jammer housed in a wheeled waterproof case. Designed for rapid deployment, the PJ300 offers multi-band interference capability with both AC and DC power options.
Frequency & Power
| Band | Coverage (MHz) | Output |
|---|---|---|
| 1 | 25–520 | 60W |
| 2 | 800–1000 (switchable) | 30W |
| 3 | 1800–2000 (switchable) | 30W |
Key Features
- Rugged wheeled waterproof case
- Rapid deployment – operational within 1 minute
- Usable in stationary mode or while being wheeled
- Integrated foldable antennas
- Optional external antennas
- Low signal loss due to short antenna cables
- Built-in dust filter
- Wide frequency coverage with extension options
- Fast random frequency sweep technology
- Wired remote control
- Multiple power supply options: 10.5–15 VDC or 90–265 VAC
- Built-in AC/DC and DC/DC converters
- High-capacity 12 V Li-Ion battery for up to 1 hour autonomous operation
- Built-in fast battery charger
- Simultaneous battery charging during external power operation
- Current consumption: 30 A from 12 V
